Description
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Specifications:
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE – 37/12.50R17 WHEEL – 17X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/12.50R18 WHEEL – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035) |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035) |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 4 Link Lift System |
| Description_DES | 4″/6″/8″ 4LINK BOX 1 |
| Description_DES | 4.0DLSS R/R 17 SD 450/550 6″ DRVR |
| Description_DES | 4.0DLSS R/R 17 SD 450/550 6″ PASS |
| Description_DES | 6″ 4LINK BOX 2 |
| Description_DES | 6″ 4LINK SYS W/ 4.0 & 2.25 DL 2019-20 FORD F450/550 4WD DIESEL |
| Description_DES | F450/550 REAR BOX KIT |
| Description_EXT | 4 Link Lift System; 6 in. Lift; |
| Description_EXT | 6″ 4LINK SYS W/ 4.0 & 2.25 DL 2019-20 FORD F450/550 4WD DIESEL. |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Heavy Wall Links |
| Description_FAB | No Cutting Or Welding |
| Description_FAB | Provides Unsurpassed Articulation And Wheel Travel |
| Description_FAB | Race Style Uniball For Superior Strength |
| Description_FAB | Ultimate In Suspension Performance |
| Description_INV | Fabtech-6″ 4LINK SYS W/ 4.0 |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech’s 6in 4 Link Conversion system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle’s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This system comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Fabtech’s 4 Link System has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly design suspension geometry is the pinnacle of Super Duty suspension systems. Each Fabtech component is expertly built in house and has specific design features and benefits as listed below. FEATURES: LINK ARMS & BRACKETS – 2in OD Heavy wall link arms have 1/4in thick steel brackets at the axle with adjustable alignment cams and Fabtech’s legendary 5 Ton joints to pivot at the frame for an extended service life. The 5 Ton joints have been proven in military use for over 10 years and are quiet and strong. The 4 Link Arms attach to stout 1/4in thick steel frame brackets for a solid mounting of the new suspension. The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension. DIRT LOGIC 4.0 CONVERSION – Simplistic super stout 1/4in thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4in diameter stainless steel body with 1.25 NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. American made coil springs handle the weight of the F450 or F550 and provide a superior r |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit. |
| Description_SHO | 6″ 4LINK SYS W/ 4.0 |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.1 |
| length | 45.5 |
| LTL | N |

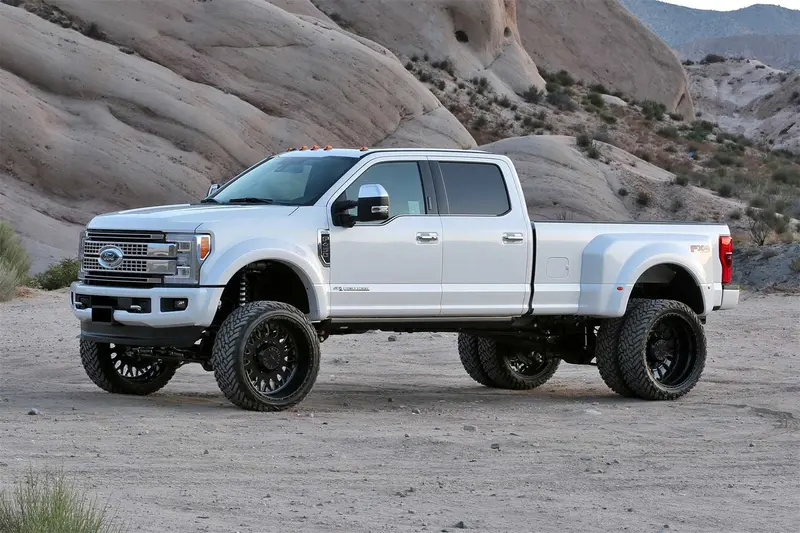

| Title | Fabtech 6″ 4LINK SYS W/ 4.0 & 2.25 DL 2019-20 FORD F450/550 4WD DIESEL |
| weight | 384.0 |
| width | 54.64 |
